Breakthrough Earth Anchoring Solutions

MANTA RAY® earth anchors are a driven tipping plate soil anchors for reaction of tensile loads. MANTA RAY anchors have ultimate capacities up to 20 tons. The simple, effective and low cost MANTA RAY anchor system represents a major breakthrough in anchoring technology with a multitude of uses in the Utility, Civil Engineering and Marine Markets.

MANTA RAY offers cost reductions for the installation and repair of walls, sheet piles and seawalls. Many of our customers utilize MANTA RAY anchors to shore-up, stabilize and repair failing walls with superb economic advantages. The bottom line is MANTA RAY is the solution to all your anchoring problems.

MANTA RAY® anchors, a patented labour and time saving device, are driven into the ground with no holes, no digging and no concrete. Unlike other anchoring systems, the MANTA RAY compacts the soil around itself providing a safe and environmentally sensitive installation. The anchors are driven with conventional hydraulic/pneumatic equipment that is readily available worldwide. Once driven to the proper depth, an upward pull on the anchor tendon rotates the MANTA RAY into a perpendicular “anchor lock” position in undisturbed soil. Proper holding capacity is measured by a gauge on the anchor locker. Each anchor is immediately proof loaded to the exact capacity required.

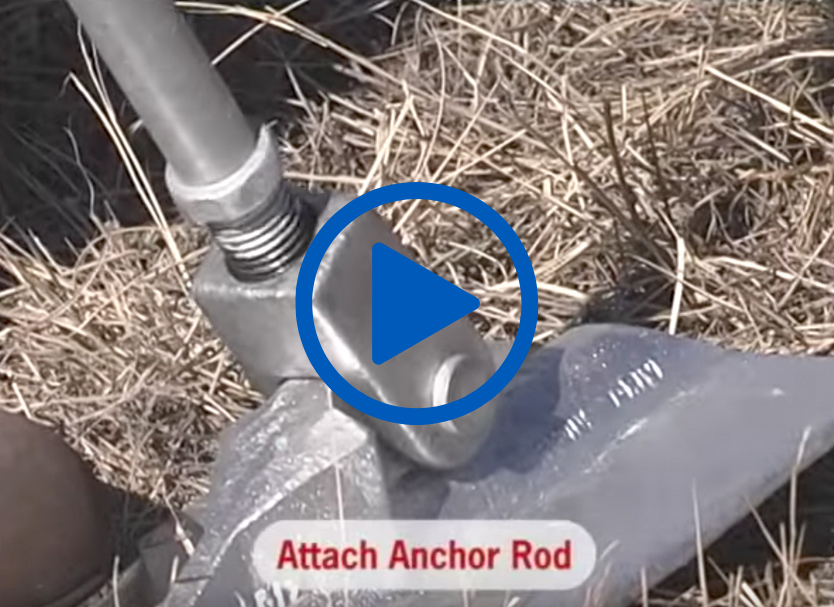

Introduction Video
Earth Anchors

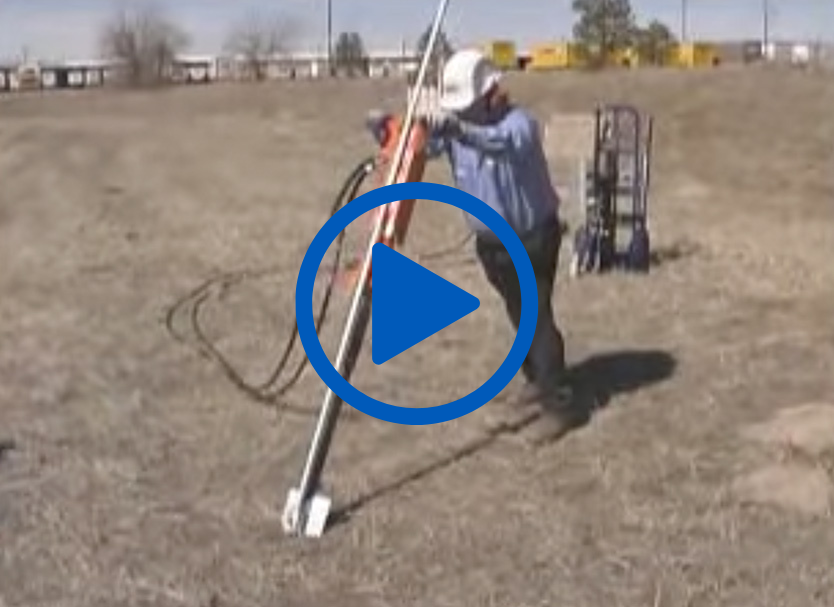

Installation Video
Utility Anchors
Installation Video
MR-68 & MR-88 Anchors

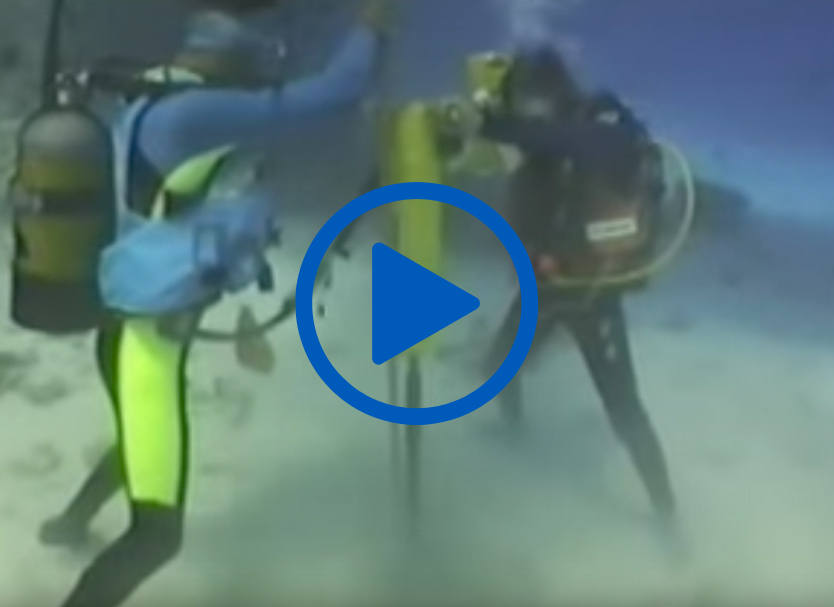

Installation Video
Marine Anchors

Manta Ray Models for every application

MANTA RAY® offers anchors with light to heavy duty holding capacities. All MANTA RAY® anchors are made of galvanized ductile iron. All anchors are load tested to the desired holding capacity with the anchor locker.

There are seven MANTA RAY® anchors with light to heavy duty holding capacities. MANTA RAY® anchors are made of galvanized ductile iron, are driven with the same drive steel set* and are tested to the desired holding capacity with the anchor locker.

*except the small MR-68 and MR-88 anchors

Galvanised Ductile Iron
Anchor Heads

MR-SR
178 Kn Utilimate Strength Anchor – Working loads (2-1 safety factor) 89Kn. This is the largest of the most commonly used MANTA RAY anchors. It is hot dipped galvanized and designed to be used in “softer” soils. It accepts anchor rods 19 mm.

MR-1
178 Kn Ultimate Strength Anchor – Working loads (2-1 safety factor) 89Kn. This is anchor is hot dipped galvanized and designed to be used in normal/medium soils. It accepts anchor rods 19 mm).

MR-2
178 Kn Ultimate Strength Anchor – Working loads (2-1 safety factor) 89Kn. This anchor is hot dipped galvanized and designed to be used exclusively in hard/dense/cobble soils. It accepts anchor rods 19 mm.

MR-3
89 Kn Utilimate Strength Anchor – Working loads (2-1 safety factor) 45 Kn.  It is hot dipped galvanized and designed to be used for medium loads in normal/hard soils. It accepts anchor rods .50″ 19 mm.

MR-88
Tough light duty anchor for maximum loads in normal/hard soils to 5,000 lbs. (22 Kn). M12 galvanised thread bar.

MR-68
Light duty anchor for maximum loads in “normal/hard” soils to 13 Kn. Accepts anchor rods. M8 galvanised thread bar.

Applications

  • Utility Applications
  • Civil Engineering Applications
  • Erosion Control Applications
  • Specialized Applications
  • Marine Applications
  • Block Walls
  • Seawalls
  • Sheet pile
  • Pipelines
  • Scaffolding
  • Foundation Stabilization
  • Temporary Structures
