Duckbill Anchors
Saving time and labour, patented DUCKBILL® earth anchors work like toggle bolts in soil. They are driven into the ground with no holes, no digging, and minimal soil disturbance creating a safe and environmentally sensitive installation. With an upward pull, the anchor tendon rotates the DUCKBILL into a perpendicular “anchor lock” position in undisturbed soil resulting in superior holding capacities.
The DUCKBILL offers the most effective, lightweight, economical solution to any anchoring application, from large to small. Applications include tree support, theft deterrence, turf reinforcement, securing portable buildings, garden sheds, tie downs and more.
DUCKBILLS are manufactured from aluminium alloys and are also available in galvanized ductile iron for hard rocky soils.
Installation Video

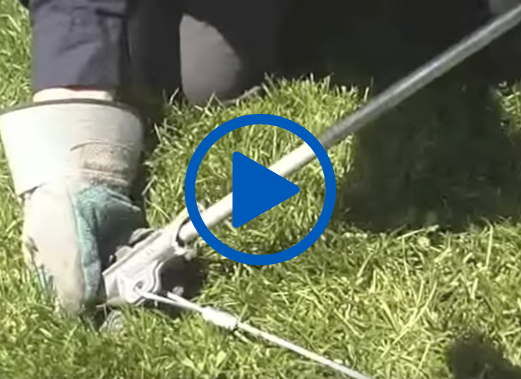

Duckbill Earth Anchors
Installation Video

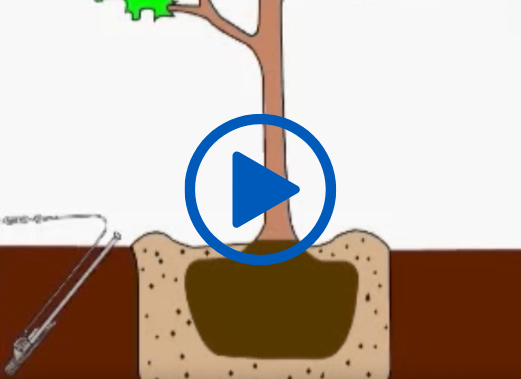

Tree Guys Kits
Installation Video

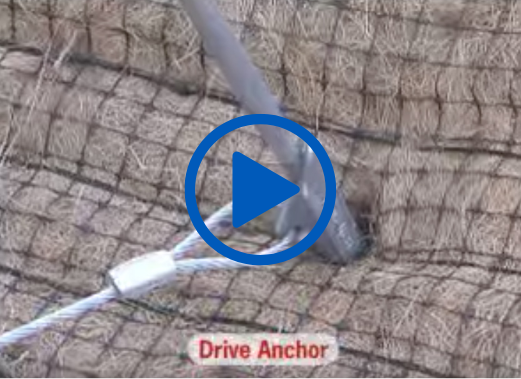

Duckbill Turf Mat
Installation Video

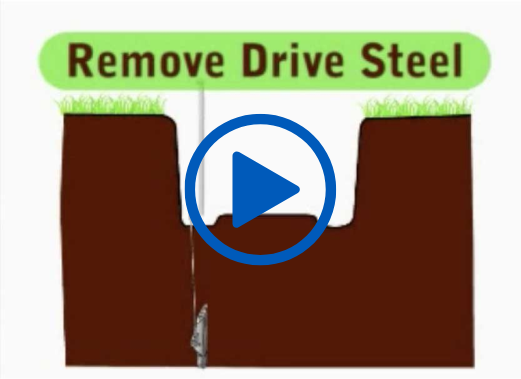

Duckbill Tree Root Ball

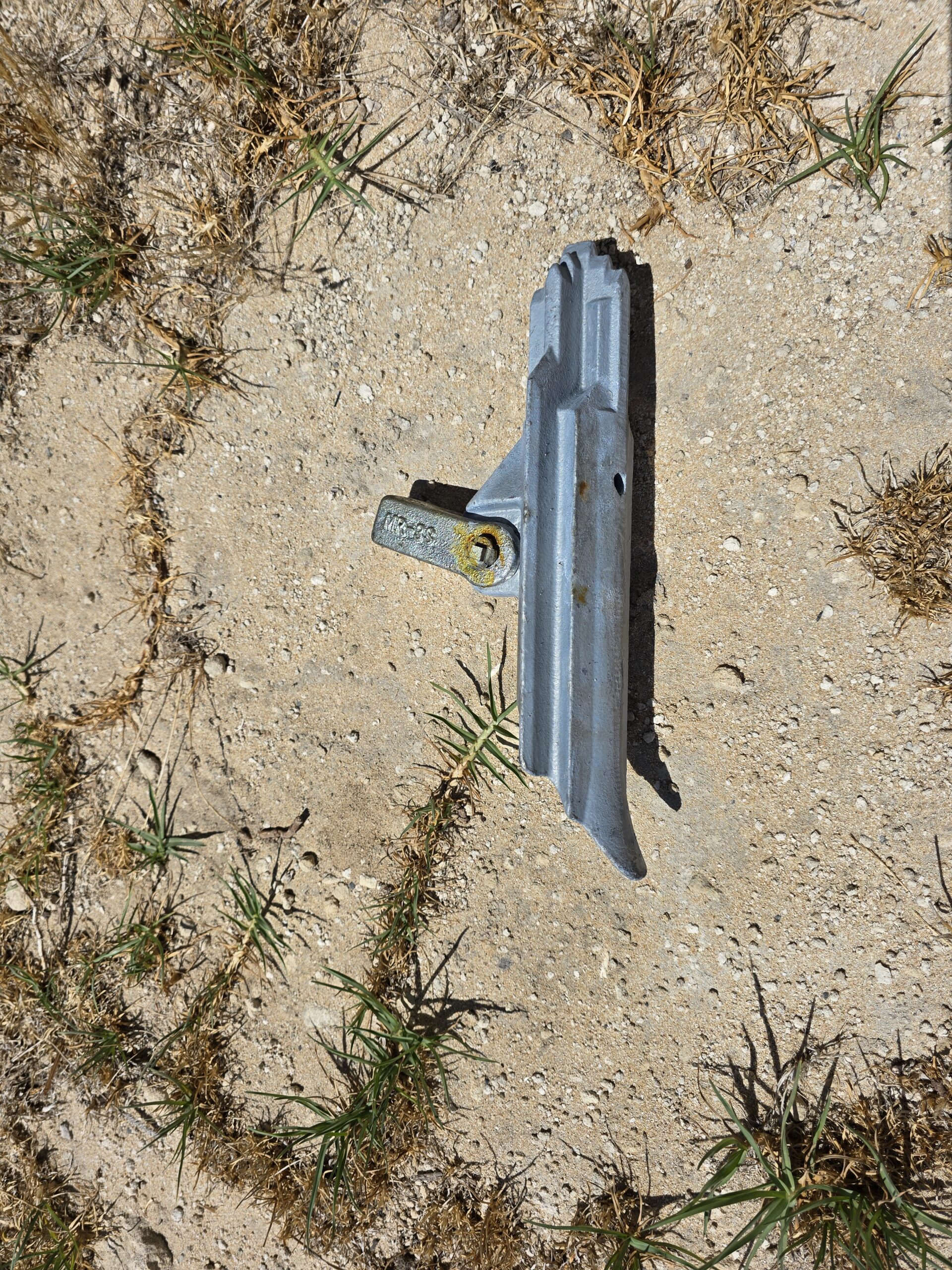

Duckbill Earth Anchor
We offer DUCKBILL Earth Anchors ranging from light to medium duty holding capacities. DUCKBILL Earth Anchors can be cabled with a variety of tendons. From galvanized aircraft cable for normal usage to stainless steel for superior corrosion resistance, DUCKBILL can adapt to all your needs.
Maximum Stability with Minimal Soil Disturbance
Saving time and labour, patented DUCKBILL® earth anchors work like toggle bolts in soil. They are driven into the ground with no holes, no digging, and minimal soil disturbance creating a safe and environmentally sensitive installation. With an upward pull, the anchor tendon rotates the DUCKBILL into a perpendicular “anchor lock” position in undisturbed soil, resulting in superior holding capacities.
So, whether you are looking for DUCKBILL anchors for portable buildings, tie downs, etc., we have got you covered. The DUCKBILL offers the most effective, lightweight, economical solution to any anchoring application, from large to small. Applications include tree support, theft deterrence, tree rootball kits, turf reinforcement, securing portable buildings, garden sheds and more.
DUCKBILLS are manufactured from aluminium alloys and are also available in galvanized ductile iron for hard rocky soils.
Galvanised Ductile Iron
Anchor Heads
68DB1-DI
Ideal for rocky or hard soils, or for use with power installation equipment. DUCKBILL anchor, used for medium holding capacities is cabled with 3.2mm (1/8 inch). For more aggressive soil, it can be cabled with 6mm galvanised or stainless steel cable.
88DB1-DI
Ideal for rocky or hard soils, or for use with power installation equipment. DUCKBILL anchor, used for medium holding capacities is cabled with 6mm (1/4 inch). For more aggressive soil, it can be cabled with stainless steel cable or 8mm galvanised or stainless steel cable
138DB1-DI
Ideal for rocky or hard soils, or for use with power installation equipment. The largest of the DUCKBILL anchors, used for medium holding capacities is cabled with 8mm (5/16 inch). For more aggressive soil, it can be cabled with stainless steel cable.
Aluminium Ductile Iron
Anchor Heads
40DB1
The smallest DUCKBILL anchor, used for light holding capacities is cabled with 1.6mm (1/16 inch) cable. For more aggressive soil, it can be cabled with 3.2mm (1/8 inch) cable.
68DB1
The next smallest DUCKBILL anchor, used for medium holding capacities is cabled with 3.2mm (1/8 inch). For more aggressive soil, it can be cabled with 6mm cable.
88DB1
The most common of the DUCKBILL anchors, the anchor is cabled with 6 mm cable. For more aggressive soil, it can be cabled with 8mm (5/16 inch) cable.
138DB
The largest of the DUCKBILL anchors, the anchor is cabled with an 8mm (5/16 inch) cable. This is anchor is installed with a small jackhammer.
Product Enquiry
Product Enquiry
Applications
- Tree guy systems
- Slope stabilization
- Tree root ball systems
- Portable buildings
- Guy stays for masts and sail structures
- Securing scaffolding
- Pipelines
- Tie Downs
- Vineyard end stays
- Anti theft systems
- Parking stops
- Duckbill Anchors are ideal for securing objects of all sizes subject to high winds
